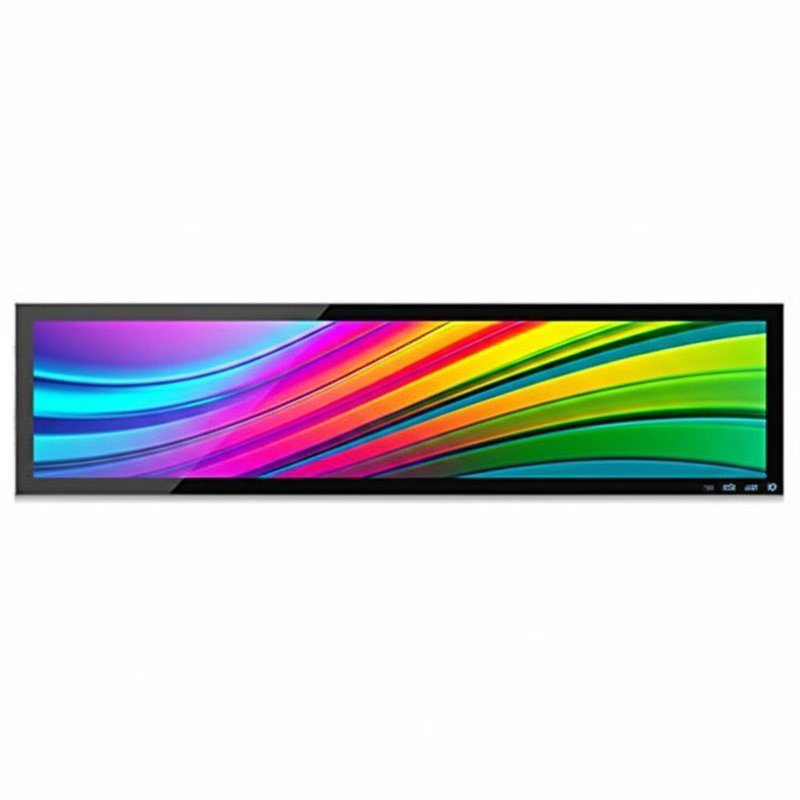

86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage

86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage

  • 86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage
86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage
商品の詳細:
お支払配送条件:
最小注文数量: 1
連絡先
詳細製品概要
モデル番号: TPK-88TP-009 インストール: 垂直
タッチスクリーン: 赤外線 スクリーンテクノロジー: LCD
インターフェイスタイプ: USB リモートコントロール: リモコン付き
OS: アンドロイド 解決: 1920*1080
輝度: 400cd/m*2 アスペクト比: 16:9
応答時間: 6.5ms 対比: 4000:1
角度を表示します: 178°/178°(h/v) OSD言語: 中国語、英語、スペイン語、ロシア語、ドイツ語、フランス語
生産能力: 20000/年
ハイライト:

86inch Bar LCD Display

,

Android OS Digital Signage

,

Infrared Touch Screen Bar LCD Display

86inch Bar LCD Poster for
Product Overview

Professional bar LCD screen/display designed for various commercial applications including , shopping malls, and supermarkets. Available in multiple sizes with optional touch screen functionality.

Key Features
  • Available in sizes from 3.9" to 86"
  • Ultra-wide stretched LCD display technology
  • Multiple operating system options: Android, Windows, or standalone
  • Optional touch screen (infrared or capacitive)
  • High brightness displays (150nit to 800nit)
  • Wide viewing angles (up to 178°)
  • Customizable with additional equipment (printer, scanner, camera, etc.)
  • Multiple mounting options: floor standing, wall mounted, or hanging
86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage 0 86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage 1
Technical Specifications
SIZE (INCH) MODEL NO. BRIGHTNESS RESOLUTION RATE CONTRAST Consumption View Angle DISPLAY Area mm Outer Dimensionmm
3.9 TPK039TXP01 150nit 480X140 16:04.5 500:01:00 TBD 70/70/50/70 95.04X27.75 105.5X40.2X2.95
Configuration Options
  • USB version AD player: Update advertisement by USB (Stand-alone Version)
  • Network version advertising player: Update through internet, supports Android OS, UCOS OS, Windows OS
  • PC version kiosk: Functions as computer, compatible with Windows/Linux (touch screen optional)
  • Android touch screen kiosk: Android OS with optional touch screen
  • LCD video wall: Narrow/zero bezel with HDMI or 4K DP display
  • Custom options: Printer, scanner, camera, keyboard, motion sensor, WIFI adapter
86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage 2 86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage 3
Android Version Specifications
Panel Brand Samsung/LG
CPU Quad-Core / Octa-Core
RAM 2GB/4GB
ROM 8GB/16GB
OS Android 5.1 or above
Video Format MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,H.264,MOV,WMV,RM,RMVB,etc.
PC Version Specifications
Panel Brand Samsung/LG/AUTO/LCD/LED/Chimee
CPU i3, i5, i7
RAM 4GB/8GB
ROM 500GB HDD or 64/120/240GB SSD
OS Windows OS or Linux OS
Frequently Asked Questions
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q: What brand of screen are you using?
A: We are using Samsung, LG and AUO original screen.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory, and we have the best structural Engineer. We hope to provide you with best screen and shape, so OEM is also welcome.
86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage 4 86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage 5 86inch Bar LCD Display with Android OS and Infrared Touch Screen for Digital Signage 6
