| Screen Size: | 49inch | Screen Resolution: | 1920*1080 |
|---|---|---|---|
| Brightness: | 400CD/M² | Response Time: | 6.5ms |
| Contrast Ratio: | 4000:1 | View Angle: | 178°/178°(H/V) |
| System RAM: | DDR 128MB | System ROM: | NAND FLASH 4G |
| Decoding Resolution: | 1080P | Power Consumption: | Not more than 5W |
| Shell Material: | Cold rolled steel with Aluminium edge | Glass Type: | Toughened glass surface |
| Operating Temperature: | +5°C ~ +50°C | Storage Temperature: | -20°C to 60°C |
| Humidity Range: | 20%-80% RH at 40°C | ||

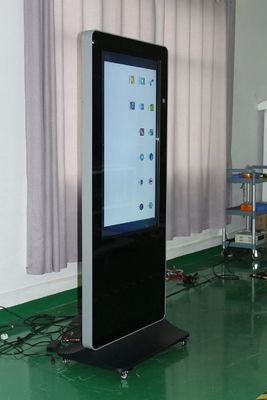

| ハイライト: | 49 inch floor standing kiosk with touch screen,digital signage kiosk with Android OS,1920x1080 resolution touch screen kiosk |
||
| Component | Specification |
|---|---|
| CPU | Dual core ARM Cortex A9 1.5GHz (max 1.6GHz) |
| System RAM | DDR3 1GB (Network Version) / DDR 128MB (USB Version) |
| Storage | 8GB NAND FLASH (Network) / 4GB NAND FLASH (USB), expandable via SD/USB |
| Decoding Resolution | 1080P Full HD |
| Operating Systems | Android 4.4.1 (Network), UCOS (USB), Windows/Linux/Apple (PC Version) |
| Video Inputs | VGA, HDMI, Camera Input (30-pin 2.0mm) |
| Audio Output | 2 x 10W/8Ω speakers (CLASS-D stereo amplifier) |
| Connectivity | 10/100M Ethernet, WiFi (150Mbps), 3G module support |
| Power Consumption | ≤5W (without peripherals), DC 12V/5A input |
| Construction | 1.5mm cold rolled steel with powder coating, toughened glass surface |
| Environmental | Operating: 0°C to 50°C, Humidity: 20%-80% RH |
| Option | Description |
|---|---|
| PC Configuration | Intel G3260 dual core up to i7-4790 quad core, 2GB-16GB RAM, HDD/SSD options |
| Touch Screen | Infrared (standard), capacitive, resistive, or surface touch options |
| Peripherals | Printers, webcams, barcode scanners, card readers, bill acceptors |
| Video Wall | 42-55" industrial panels supporting 10×10 configuration with wireless control |
