30inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film

30inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film

  • 30inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film
  • 30inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film
  • 30inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film
30inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film
商品の詳細:
起源の場所: 中国シンセン
ブランド名: TOPADKIOSK/OEM/Customized
証明: CE/FCC/ROSH/IECEE
モデル番号: TPK-FT30010
お支払配送条件:
最小注文数量: 1pc
価格: Negotiate
パッケージの詳細: 最初にカートンに詰められ、次に外装用の木製ケースで補強されます
受渡し時間: あなたの支払のレシートの後の10-15days
支払条件: T/T、MoneyGram
供給の能力: 1ヶ月あたりの3000pcs
連絡先
詳細製品概要
名前: 30inch 3300lumen Holoの背面映写のフィルムの接触プロジェクター キオスク 入れられた電圧: AC100~240V 50 /60 HZ
Type: IPS screen 材料: 金属の箱+強くされたガラス
タッチ画面: 容量性 サイズ: 30インチ
色: 白い黒い銀を着せたり/カスタマイズされた色 設置方法: フロアスタンド
CPU: Intel i3、i5、i7 RAM: 4gb/8GB /16GB
SSD: 128gb /256 GB /512 GB OS: Linux/窓10 os
ハイライト:

3300 Lumen Touch Projector Kiosk

,

Holo Touch Projector Kiosk

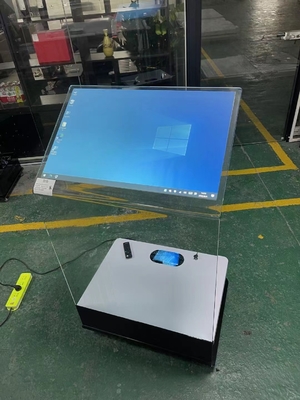

30inch 3300lumen Holo rear projection film touch projector kiosk



*By HoloTerminal can provide information and presentations at prominent place play. The most appealing design element adds to this problem in any environment.

*Unlike traditional terminals, the technology discreetly in the background.
*The focus is the design: A curved glass pane with lighting 30 inch Holo foil shows your message freely floating in space. content stored on a mirror to the Tempered glass, crystal clear and brilliant.

Features:

*Unique design

*Tempered glass to the main parts of the kiosk

*High quality 30inch touch foil film with transparent rear projection film

*Mini projector for image displaying

*Multi-touch operation

*Various application



Worldwide certificate approval, such as RoHS, CE, and FCC

 30inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film 030inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film 130inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film 2

Touch foil film (there is no gap between kiosk frame and TFT LCD monitor)

Items Touch Foil Film Specifications
Touch type Projected capacitive touch Foil
Typical feature Touch through tempered glass
Touch points Multi 12 points
Accuracy ≤1mm
Sensor
TX28 RX48
Light transmittance Over 95%
Scanning speed 8ms
Output solution 4096X4096
Safe distance At least 3mm (between TFT LCD and touch foil)
Life span 7-9 years

PC configurations (it can be changed per the demand of clients)

Items PC Configurations
CPU Intel I3-4010U
Memory DDR3 4GB
Hard disk SATA 64GB
Interfaces
1*LVDS, 1*HDM(I), 1*VGA, 4*USB, 1*LAN, 2*COM, 1*WIFI
Operating System Windows 7 (trial English version)
Projector
Items PC Configurations
Name Projector
Projector brightness 3300lumen
Contrast 15000:1

Kiosk

Items Kiosk Specifications
Material 8-12mm Tempered glass
Voltage input AC 110V – 240V
Power plug America standard, Europe standard
Work temperature 0°C to 40°C
Storage temperature -20°C to 60°C
Humidity 20%-80%



30inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film 330inch 3300 Lumen Touch Projector Kiosk Holo Rear Projection Film 4








FAQ:

Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs and free of charge.

Q: What kind of inspection you can provide?
A: Topadkiosk has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.

Q: What is your guarantee period?
A: Topadkiosk provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
During the guarantee period, Topadkiosk will send the new replacement for free if it's because of hardware problem after we confirm, and cover the shipment fee for the replacement delivery, the buyer just need to cooperate to send the damage one back to our factory.
For the problem advertising machine, it shall be returned to factory for repairing. Topadkiosk will be responsible for expenses arising out of such reparation, including but not limited to the cost of new parts and shipment of products or parts from us to Buyer.
Beyond the guarantee period machine, Topadkiosk will provide maintenance service and technical support (Hardware and other possible charges, Topadkiosk will not bear the responsibility).

Q: Are you manufacturer(factory)?
A: Yes, we're. Also OEM/ODM service available here. It's our pleasure to provide best solution for you.

Q: What's the lead time?
A: Mass order: 7-10 days depending on order quantity.
Sample: 1 day when there is stock,7-10 days for custom design.

Q: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card, MoneyGram,etc.

Q: Do you provide OEM service?
A: Of course. We have a professional team which is having considerable experience in colour decoration cases and manufacturing. Please send us the high definition images, text, logo and how would you like to arrange them. We will try our best to put your ideas into effect and sent you finished files for confirmation.
